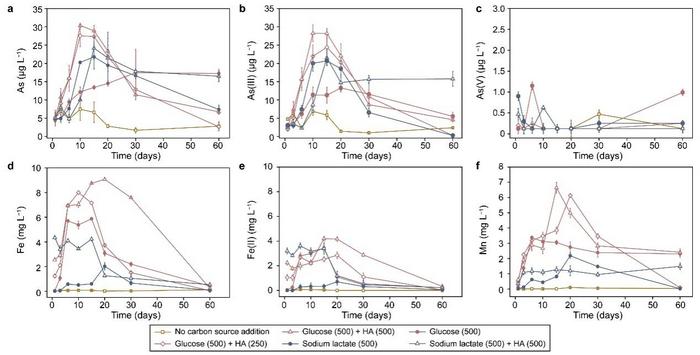

Figure 2. Variation of As (a), As(III) (b), As(V) (c), Fe (d), Fe(II) (e), and Mn (f) in solution with sediment stimulated by organic matter. (IMAGE)

Chinese Society for Environmental Sciences

Figure 2. Variation of As (a), As(III) (b), As(V) (c), Fe (d), Fe(II) (e), and Mn (f) in solution with sediment stimulated by organic matter.

Caption

With the addition of OM, As, Fe, and Mn were significantly released from the sediment. In general, As, Fe, and Mn concentrations increased first and then decreased during the experiment. Samples with As(V) or As(III) below the detection limit of 0.25 μg L−1 were plotted as half of the detection limit (0.125 μg L−1) to make the comparison. The error bar is the standard deviation (n = 4).

Credit

Environmental Science and Ecotechnology

Usage Restrictions

Credit must be given to the creator. Only noncommercial uses of the work are permitted. No derivatives or adaptations of the work are permitted.

License

CC BY-NC-ND
