Figure 3 | Application of collimation mode in directional radiator.

Caption

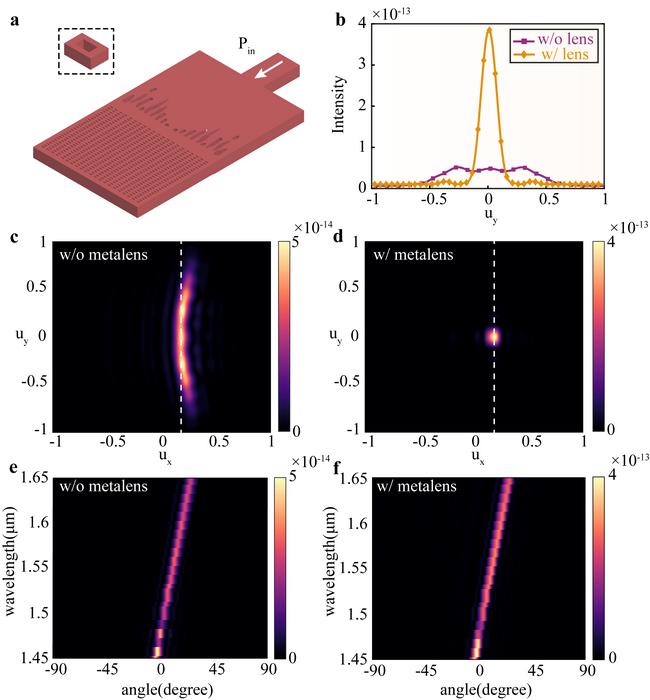

a, antenna array embedded in the device, inset: cell of the array; b, optical field intensity versus uy for far-field projection (yellow line is the collimated light, purple line is the uncollimated light, with ux = 0.185); c, far-field projection of guided wave without collimation; d, far-field projection of guided wave after collimation by our metalens, with the spot focused at 10°; e, f, uncollimated and collimated guided wave in far-field projection, wavelength versus offset angle (uy = 0).
