An experiment shaped like a barbell

Caption

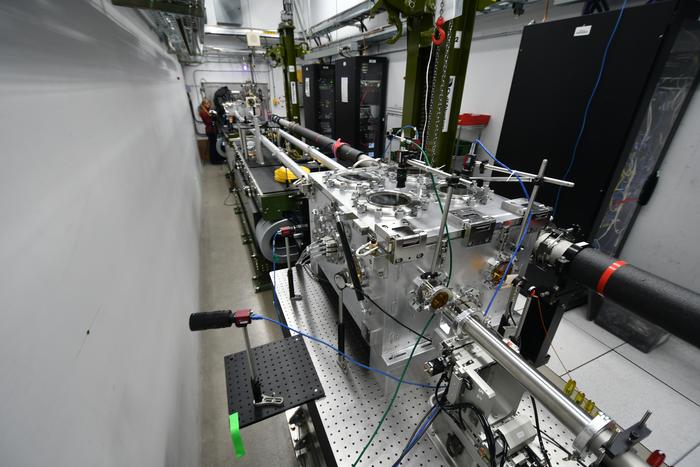

The experimental apparatus is shaped roughly like a barbell, with two boxy vacuum chambers at the ends and beam pipes connecting them. X-ray pulses travel from the front cavity chamber to the back one through one pipe, then back to the front cavity through the other pipe, completing a 46-foot loop. Diamond mirrors inside the cavities guide the pulses along precisely the right path.
